NMEA Baudrate Converter

UNIMAX NBC-22 NMEA Baudrate Converter

NMEA baudrate converter is used to send and receive NMEA data with different baud rates. Input and output speed can be adjusted according to the desired speed. Configurable independently input and output speed 4800bps to 115200bps. The embedded software can be updated according to the specially specified baud rate.

In order for the DIP Switch settings to be effective, the device must be disconnected from the power and given again. Data loss may occur when converting from a higher value of baud rate to a lower due to the bottleneck effect.

The NBC-22 can be powered within the range of 9~32 VDC. The nominal voltage of 24 VDC is advised for powering the device in normal operation. Power input port has a protection for incorrect polarity connection of the supplying voltage.

Technical Specifications
Supply voltage9-32VDC
Power Supply ProtectionReversed polarity protection
Internal resetable fuse
Input Data ProtocolNMEA0183, IEC61162
Input1 X Galvanic isolated
Output1 X RS422 RS485
(2 output optionally)

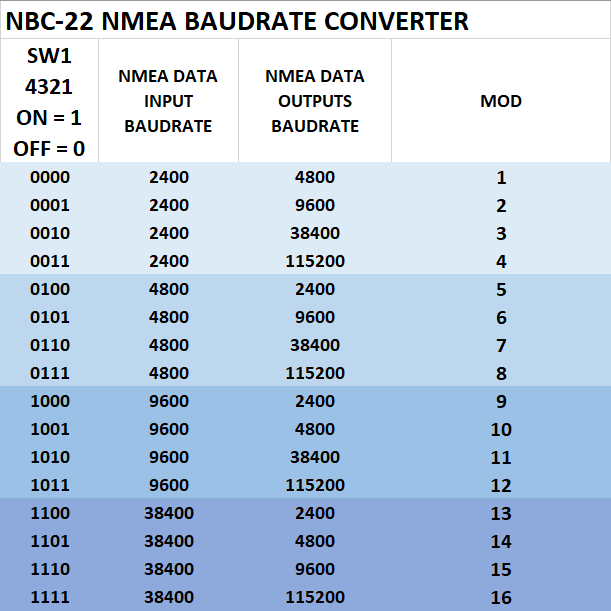

Input SpeedConfigurable with DIP Swithces 4800, 9600, 38400, 115200 bps
Output SpeedConfigurable with DIP Swithces 4800, 9600, 38400, 115200 bps
IndictorsPower LED
Input Data LED
Output Data LED
System LED
Case – DimensionsABS DIN Rail Mount Box
Width: 105 mm
Depth: 86 mm
Height: 58 mm
