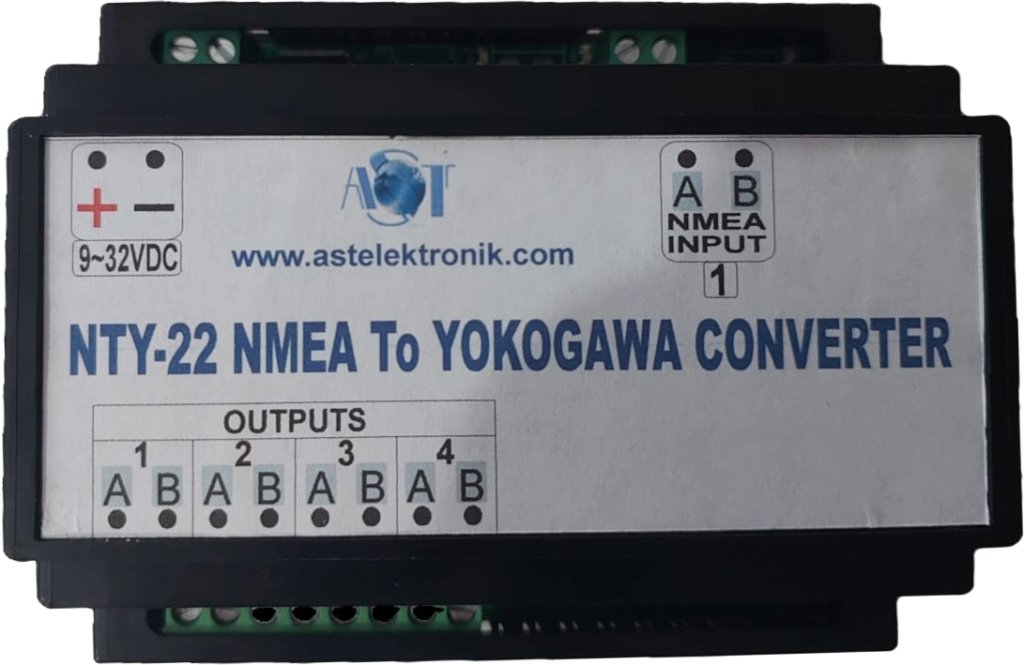

NMEA Yokogawa Gyro Converter is used to NMEA heading information to Yokogawa gyro format. It also converts Yokogawa gyro format to NMEA heading information. In this way, the installed devices are not affected by the retrofit. Operating modes can be set by jumper settings.
NMEA Yokogawa gyro converter accepts HDT, ROT, THS telegrams to convert signal to Yokogawa data. Default input speed is 4800bps, output speed is 9600bps. Different input-output speed options can be adjusted with DIP switches on the board.
The NTT-22 can be powered within the range of 9~32 VDC. The nominal voltage of 24 VDC is advised for powering the device in normal operation. Power input port has a protection for incorrect polarity connection of the supplying voltage.
| Technical Specifications | |
|---|---|
| Supply Voltage | 9-32VDC Power supply |
| Power Supply Protection | Reversed polarity protection Internal resetable fuse |
| Protocol | NMEA0183, IEC61162 or Yokogawa Gyro format data |
| Input data | $xxHDT, $xxROT, $xxTHS |
| Output data | Yokogawa Gyro format, $xxHDT, $xxROT |
| Input | 1 x Galvanic isolated Input |
| Output | 1 x RS422 2 x RS422 (Optional) |
| Input Speed | Configurable with DIP Swithces 4800, 9600, 38400, 115200bps |
| Output Speed | Configurable with DIP Swithces 4800, 9600, 38400, 115200bps |
| Case – Dimensions | ABS DIN Rail Mount Box Width: 105 mm Depth: 86 mm Height: 58 mm |
